Micro waterjet bridges the gap between EDM and Micro Laser.

/ins Cutting narrow incisions with ultra-high precision in high density materials using waterjet technology requires a specific waterjet cutting process: the Fine Abrasive Waterjet process (FAWJ). The first FAWJ cutting head was developed by Water Jet Sweden in 2008.

Fine Abrasive Waterjet bridges the gap

Waterjet cutting is a common method for processing parts in high density materials such as aluminum, stainless steel, titanium and carbon composites. The FAWJ cutting process bridges the gap between micro laser and EDM cutting and brings water jet cutting into the field of micro part processing.

To enable such levels of precision you need two things: (1) a cutting head and cutting process for FAWJ cutting, and (2) a machine built for extreme accuracy. The NCM 10 Micro from Water Jet Sweden fulfils both of those requirements.

FAWJ cutting process for 0.2 mm incisions

The first micro waterjet cutting head was developed by Water Jet Sweden in 2008. It is a high precision cutting tool producing one of the most precise abrasive water jets in the world. The unique cutting head enables an abrasive jet diameter down to 0.2 mm. The FAWJ cutting process requires very fine abrasives of 230-240 mesh and a special CNC controlled dosage abrasive feeder.

Machine table designed for ± 0.008 accuracy

To reach the levels of accuracy required in micro part manufacturing, the NCM 10 water jet has a number of unique design features to create a rigid table that withstands temperature fluctuations:

Mineral Casting Bearlit table frame – a table frame made of a composite material with exceptional stiffness that withstands vibrations and temperature fluctuations. The frame is integrated in the machine construction and motion system as a complete unit.

Rubber suspended stainless steel water catcher – the free-standing catcher solution prevents vibrations and temperature variations from influencing the cutting process. Stainless steel makes it maintenance free.

Renishaw Invar Scale in X and Y – with a Renishaw Absolute Linear Encoder fitted in both X and Y axes you have a micrometer scale with an extremely low expansion coefficient and ultra-high resolution.

Prepared for any kind of fixtures

The palettized cutting table makes it easy to install fixtures and presses for different types of machining. Maximum table size is 1x1 m which covers most cutting applications. The cutting table is fixed into the table frame to enable ultra-high precision cutting.

“There are many suppliers who state that they offer micro cutting machines, but not many can offer a true micro part cutting tool with 0.2 mm incision combined with ± 0.008 accuracy,” says Tony Rydh, co-founder and CTO at Water Jet Sweden.



Fine Abrasive Waterjet Cutting vs. EDM

 Extruder tool matrix

Tempered tool steel, 15 mm

 NCM 10

Max. speed 11 mm/min

Min. speed 4 mm/min

Cutting accuracy: 0.02 mm

Manufacturing time: 1 h 30 min

Prime cost: € 180

 EDM:

Speed: 1 - 2 mm/min

Accuracy: About 0.001 mm

Manufacturing time:  > 8 hours

Prime cost: € 480



 About Water Jet Sweden AB

A successful pursuit of measurable customer benefits
Back in 1993, we produced our Machines in a private garage. Today we serve customers in more than 40 countries. Our native town of Ronneby in southern Sweden has become a R & D cluster of global renown, where the scientific establishment, the water jet industry and the business community join efforts to develop the water jet cutting technology of tomorrow.
Our ultimate end product is customer value, and the benefits our machines and service can offer are highly measurable in terms of time, money, product quality and sustainability.

For more information, please contact:

Water Jet Sweden AB
Lennart Svensson, MD or Klas Wallström, CMO
Teknikvägen 4
S-372 38 Ronneby Sweden
Tel: +46 457 455 440
E-mail: sales@waterjet.se

http://waterjetsweden.com





Rating:

vote data

Let us know if you are going to use this press release. Thank you!



Company Information


Water Jet Sweden Logo


Address and contact details:

Water Jet Sweden AB

Teknikvägen 4

372 38 Ronneby

Sweden

Phone: +46 457 455 440

sales@waterjet.se

www.waterjetsweden.com

Press contact


Water Jet Sweden CMO Klas Wallström
Klas Wallström, CMO
Phone: +46 457 455 430

Klas.wallstrom@waterjet.se

Via social media

Company Information


TAGARNO Logo


Address and contact details:

Water Jet Sweden AB

Teknikvägen 4

372 38 Ronneby

Sweden

Phone: +46 457 455 440

sales@waterjet.se

www.waterjetsweden.com

Press contact


Water Jet Sweden CMO Klas Wallström
Klas Wallström, CMO
Phone: +46 457 455 430

Klas.wallstrom@waterjet.se

Via social media

About Water Jet Sweden


Our Business Concept

 “Water Jet Sweden develops, manufactures and markets advanced solutions for water jet cutting and provides a quality aftermarket offer with service and parts.”

Our Vision

“We shall be the obvious first choice for customers worldwide who seek solutions in water jet cutting where high quality, high technical content and high service standards are the basic elements.”

A successful pursuit of measurable customer benefits

Back in 1993, we produced our machines in a private garage. Today we serve customers in more than 40 countries. Our native town of Ronneby in southern Sweden has become a R & D cluster of global renown, where the scientific establishment, the water jet industry and the business community join efforts to develop the water jet cutting technology of tomorrow.



Water Jet Sweden Cutting Various Materials
Water Jet Sweden cutting various materials: aluminium, carbon fibre, glass, rubber, stainless steel, stone, and veneer

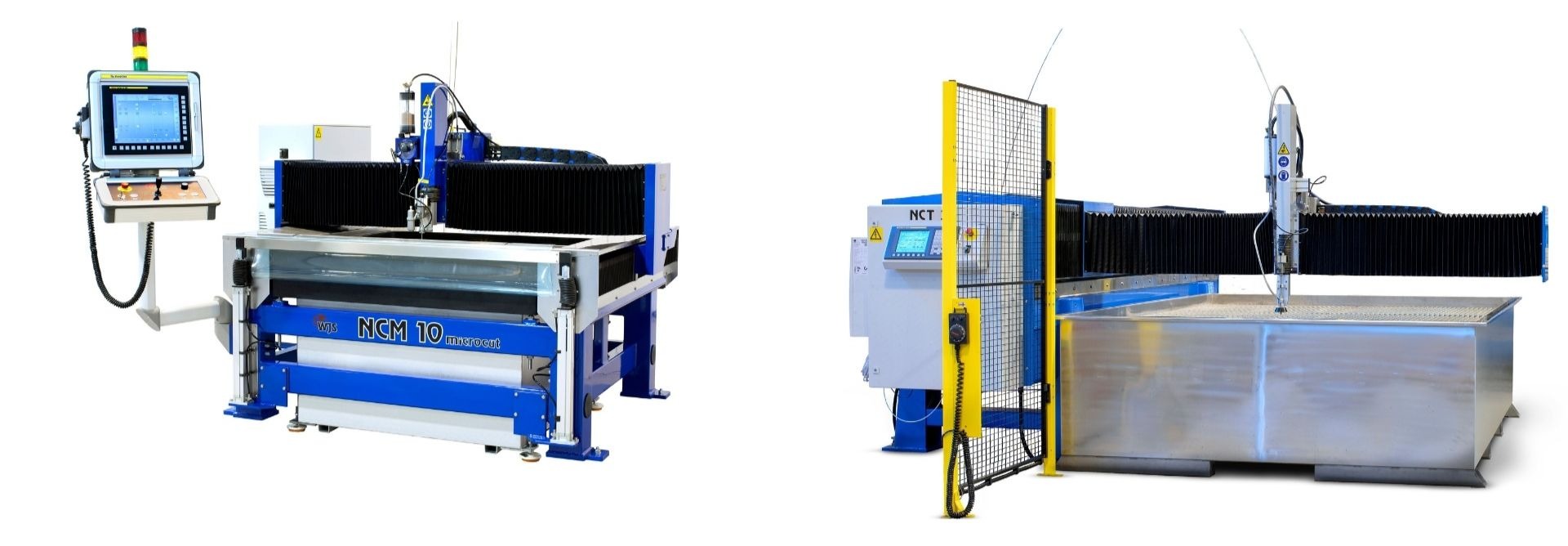

Water Jet Sweden Cutting Machines

Water Jet Sweden NCM 1010 micro cutting machine & NCT basic 2D cutting machine

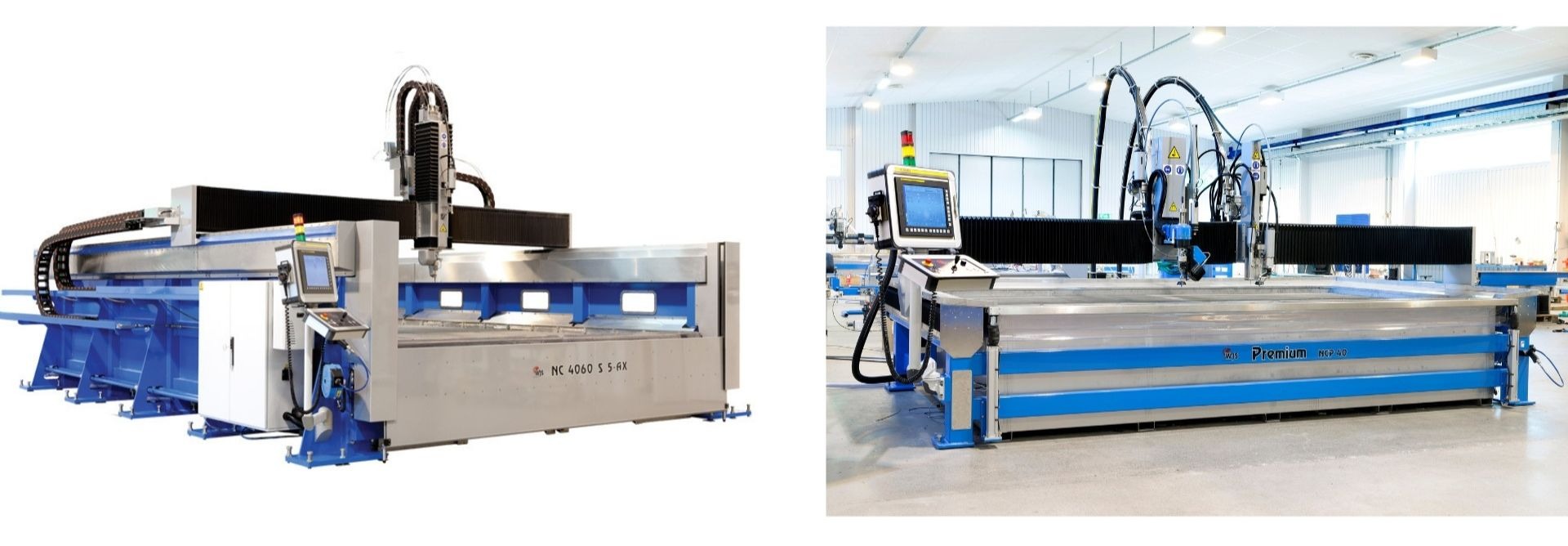

Water Jet Sweden Cutting Machines
